Download Bradley HS Undermount Basin Revit Family Library

Posted by Daniel Hughes on Apr 12, 2016, 7:45:00 AM

View HOK Product Design Group | Bradley HS Undermount Basin Page

A 2-year collaborative design and manufacturing project between HOK Product Design and Bradley Corporation --has produced the solid-surface Terreon®, HS Undermount Basin Products with the HS Undermount Basin Revit Library.

The seamless, shallow, -nearly flat bottom basins (sink bowls) were designed to meet ADA accessibility for healthcare, school, laboratory and other design markets.

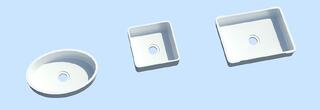

The HS Basin Revit Library includes the HS Oval, Square and Rectangular Basins.

hs_undermount_basins_oval_square_rectangle

Designers can specify and order Bradley Terreon® sheet stock as countertop material and thereby, incorporate the HS Basins into casework and millwork countertops.

View Bradley Solid Surface Undermount Basin Product Page

The HS basins are also bowl options in Bradley's prefabricated, solid surface Omnideck Lavatory Product Line. The Omnideck Revit Family Library can be downloaded from the same page as the HS Undermount Basins. Custom Omnideck Revit families with the HS basin bowl options available upon request.

LD3010-HS-TO1 Omnideck with Oval Multipurpose Basin

Visit Bradley's 3-Part Specifications page as we have both Division 22 and Division 12 specifications written in MasterSpec format for both applications of HS basins.

Bradley BIM Articles

Download Complete Bradley Revit Family Library – Download All Options - 1000 Revit Family ModelsDownload Complete Bradley Revit Family Library (1000 Families) – Download All Options

Download Bradley Revit Family Library From Autodesk Seek Building Product Manufacturer Revit Library

Topics: bradley revit library, bradley healthcare bim models, bradley lavatory systems, Bradley Terreon®, bradley 3-part specfications, bradley prefabricated lavatory systems, Bradley Healthcare Products, bradley healthcare revit family, bradley revit sink family, solid surface basin, revit lavatory sink family, ada accessible design, hok product design, HS Undermount Basin
