BIM Process Improving Construction Site Safety | Turner Construction

Posted by Daniel Hughes on Jan 25, 2017 1:05:00 PM

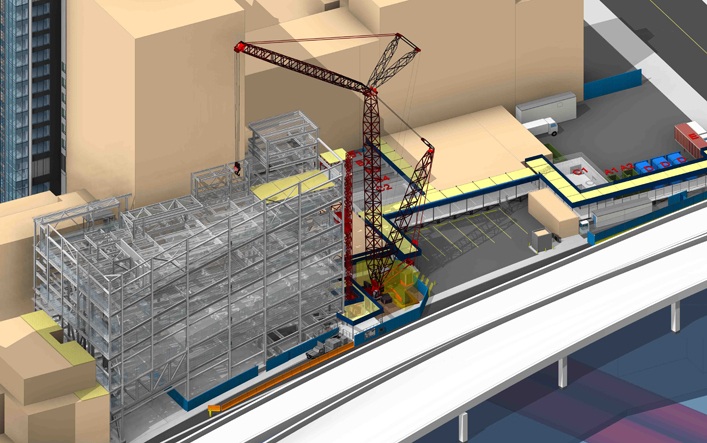

New York City Department of Buildings Approves First 3-D BIM Site Safety Plans

Turner Construction released their ground-breaking BIM Site Safety article in May 2012.

Turner Construction Company Received Approval for Building Information Model (BIM)-based Site Safety Plans

3D BIM Site Safety Plans Enable Building Inspectors to Take Virtual Tours of Construction Projects and Review them in Real Time on the Construction Site. Continue Reading >>

In August 2012, Turner Construction, provided a BIM Design-Build Healthcare Success Case Study for the Fort Benning Hospital at our DBIA - Federal Sector Conference in Washington DC.

The Turner Construction case-study, shared how they used the hospital BIM model to provide a dramatically safer construction process for their workers. In addition, the revised process increased the Turner Construction worker's output twelve-fold; thereby improving the construction schedule.

Description of Improved MEP Hanger Installation Construction Process:

Turner Construction is using a BIM-based construction process; that delivers a dramatically faster process for installing MEP hanger inserts; while providing a substantially safer work environment for construction workers.

The BIM process has enabled sub-contractors to connect geographically-position (GPS) technology and BIM facility files to create a way-finding, installation system. Turner teams collect hanger point locations; from the GPS coordinated BIM file (In the Office) for layout in the field.

Traditionally, MEP hanger inserts were installed from the underside of the deck; after the concrete topping was poured. We used a ladder (Less safe), drilling up into the underside of concrete. One worker could install approximately 20 holes a day.

The GPS \ BIM-enabled process, empowers a crew of 3 workers to install (From top of metal deck and walking with no ladder needed– (Safer) to install 750 hanger inserts\day.

Installation is much faster and safer – Simply walk to a hanger insert location using the GPS device --and screw in the threaded rods for pipe hanger racks, cable tray, electrical conduit racks, etc.

This is an excellent example of a time-saving, safer, and more efficient process to install 100,000+ hanger inserts into metal deck before concrete topping is poured.

Read More

Topics: turner construction, bradley healthcare bim models, revit for healthcare, revit healthcare family library, Government Revit BIM, Construction Revit BIM, bim construction safety planning, Bradley Healthcare Products, government bim, us army corps of engineers, Army Health Facilities Planning Agency

Turner Construction Design-Build BIM Study | Serving the BIM Kool-Aid

Posted by Daniel Hughes on Jan 23, 2013 6:20:56 AM

Martin Miller (left) and Jeff Bauer (center) from Turner Construction

Read More

Topics: turner construction, bradley healthcare bim models, revit for healthcare, revit healthcare family library, Government Revit BIM, Construction Revit BIM, bim construction safety planning, Bradley Healthcare Products, government bim, Revit-BIM Trends, Owners Revit BIM, us army corps of engineers, Army Health Facilities Planning Agency

Modular Prefabrication | Design-Construction Success for Healthcare Design

Posted by Daniel Hughes on Jan 22, 2013 3:33:43 AM

HealthcareDesign Magazine article (Dec 2012): Is Healthcare Next to See a "Game Change" in Modular Building? compares the successes of modular, prefabrication design-construction projects of private developers with recent healthcare projects.

Excerpt: The source of the excitement was the use of modular building components—prefabricated pieces, whether for patient rooms or MEP racks—being built offsite and then brought into a facility for quick installation. Not only did the jurors note the innovation involved in thinking outside the box, but also the inherent benefits that come with it, like shaving time off the schedule, reducing construction waste, lowering labor costs, and heightening quality.

Read the complete article to obtain project links to both the healthcare and private projects successfully implementing modular, prefabrication processes.

Learn how the BIM process, construction prefabrication and modular design are delivering value by downloading this report from our article: Download McGraw-Hill SmartMarket Report | Prefabrication and Modularization | 2011

Related Articles:

Read More

Topics: revit for healthcare, emergency fixture revit family, revit healthcare family library, Construction Revit BIM, bim modular prefabrication, Bradley Healthcare Products, Revit-BIM Trends, Healthcare Facilities Symposium Expo, how to implement revit, construction prefabrication, healthcare design magazine, revit patient care family

Revit Needle Disposal - Collection Family | Bradley Healthcare Revit Family Library

Posted by Daniel Hughes on Nov 28, 2012 10:34:19 AM

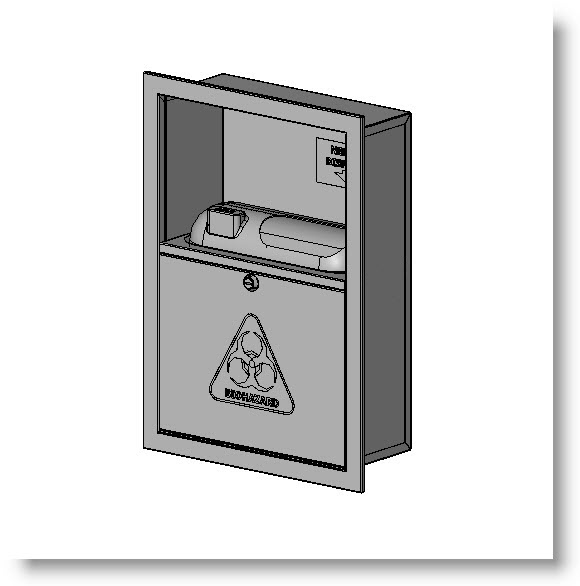

View or Download Bradley Revit Needle Disposal Unit Family from Bradley Healthcare 900 Series section of Washroom Accessories Revit Family Library.

Read More

Topics: revit sharps disposal unit, bradley healthcare bim models, revit healthcare family library, revit sharps collection family, autodesk revit architecture, revit needle collection family, download free revit family library, Bradley Healthcare Products, Revit Needle Disposal Family, bradley healthcare revit family, Bradley Patient Care
