How to Add Bradley Product Revit Material Catalogs to Project

Posted by Daniel Hughes on May 17, 2017 4:40:00 PM

Bradley has created custom Revit Material Catalogs for all materials specific for Bradley products.

Bradley Revit Material Catalogs can be downloaded for

A link to Bradley Revit Materials is found on the Bradley Bradley BIM-Revit Library Page in the right margin.



All materials use a naming convention that is consistent with materials already supplied in Revit.

Bradley Revit Material Catalogs are unique as material definitions are attached to individual "Chips" in a Revit Project file (*.rvt) file (shown above).

A Revit user can copy a material chip(s) from the Material Project File and paste it into their Revit Project File. When the chip is pasted into their project; it carries the material definition into the project. Just delete the chip and the material definition remains in the project.

  1. find and select the Bradley product family in the project,
  2. select the material parameter in the Property Browser and
  3. select the added Bradley Material in the project Material Browser dialogue box.

This copy-paste process avoids using  the 'Transfer Project Standards' dialogue box; that would transfer ALL the materials into the client Revit project. This keeps the project file smaller; while keeping the Project Material Library clean from unwanted \ unused materials.

When you download our Material Catalogs, you will receive them as separate .zip files.

Inside the downloaded .zip files  is a Revit Material Project file (*.rvt ) and the corresponding material .jpg image files; that are Bradley materials. The material .jpg files are required for the Revit rendering process.

  1. Copy all the .jpg image files into a Bradley folder in your firm's Manufacturer Material Library folder.
  2. Add this new folder to the 'folder search path' that Revit Rendering searches to find material image files.
  3. In the Revit Options Dialogue box, select Rendering tab in the left margin.
  4. Select the 'plus + symbol' to add the new directory.
  5. The icon with dots " ...  "appears in the right.
  6. Select the dots to browse to and select the Bradley material folder that was added.
  7. Revit will now automatically search this folder list for materials, when rendering a view.



Read More

Topics: bradley revit library, download revit material catalog, Revit material catalog, Revit Plumbing fixtures, Revit Plumbing Family, Revit Family Material, revit render material, render ready material library, Bradley Revit Family, Bradley Revit Material Library, bradley bim library, Bradley Revit Material, Revit Training-Education

Autodesk Seek Manufacturer Library - Bradley Revit

Posted by Daniel Hughes on Apr 13, 2016 4:25:00 AM

Portions of the Bradley Revit Family Library, which exceeds 1,000 Revit families is available to download from Autodesk Seek - Bradley Corporation.

The Autodesk Seek - Building Product Manufacturer Revit Library can be accessed directly from within your Revit software; while you are working on a Revit project.

The most current Bradley Revit Family Library, Bradley Revit Family Material Catalogs and Bradley Bradley 3-Part Product Specifications are always available for download from the Bradley Corporation website.

Online Technical Support for Bradley Revit models is available through the BradleyBIM.com Blog.

Related Autodesk Articles

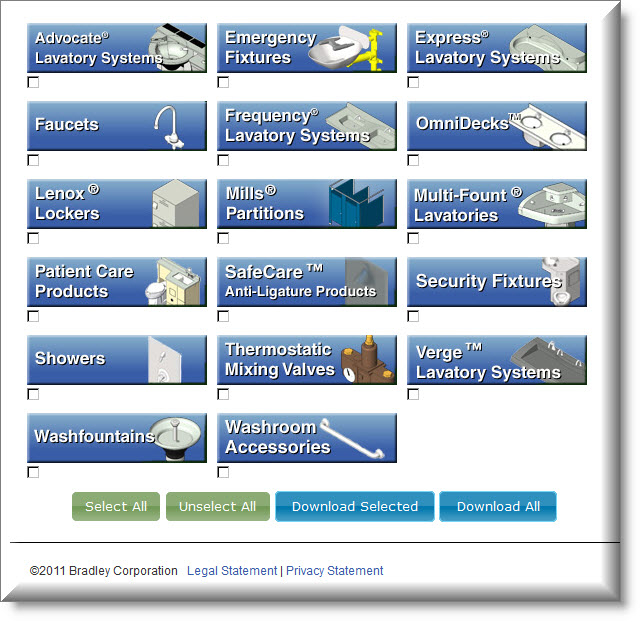

Download Complete Bradley Revit Family Library (1000 Families) – Download All Options

 Want Specifications With Your Bradley BIM Models?

Read More

Topics: bradley revit library, download revit material catalog, Revit material catalog, autodesk seek revit family library, download free revit family library, bradley 3-part specfications, Revit Help-Technical Support, Revit-BIM Trends, render ready material library, download free revit family component, autodesk seek, Bradley Seek Revit Library, autodesk seek building product manufactuer library

Bradley Revit-BIM Family Quality Standards | Top 10 FAQs

Posted by Daniel Hughes on Apr 2, 2016 7:46:00 AM

Each week Bradley clients; architects, engineers, contractors and facility owners contact our Revit-BIM Team with questions that ask;

"How are Bradley Revit families created?"

Here are the Top 10 Value Points that we share with them;

01) Extensive Division 10 & 22 Revit Library: Bradley's Revit Family Library currently has more than 1000 Revit family components representing thousands of Bradley plumbing fixture and specialty equipment products.

02) Documented-Proven Modeling Standards: We initially used the Revit Model Style Guide from Autodesk SEEK.

However, based on 10 years of actual Revit-BIM project experience, I rewrote and tripled the size of the original document. Bradley's new document better serves our clients' and the industry's evolving Revit-BIM project standards-practices.



03) Family Types: Bradley Revit family models represent thousands of Bradley products. Many Revit families include multiple variations of each Bradley product.

 We define product variations for a single Revit family; one of two ways:

Read More

Topics: bradley revit library, Revit MEP, Bradley Revit-BIM FAQs, Revit material catalog, Revit Plumbing fixtures, Revit Help-Technical Support, omniclas title numbers, Bradley Plumbing Fixture Revit Family, masterformat title numbers, Bradley Specialty Equipment Revit Family, revit architecture family component, revit technical support, revit 2012 2011 2010 family library

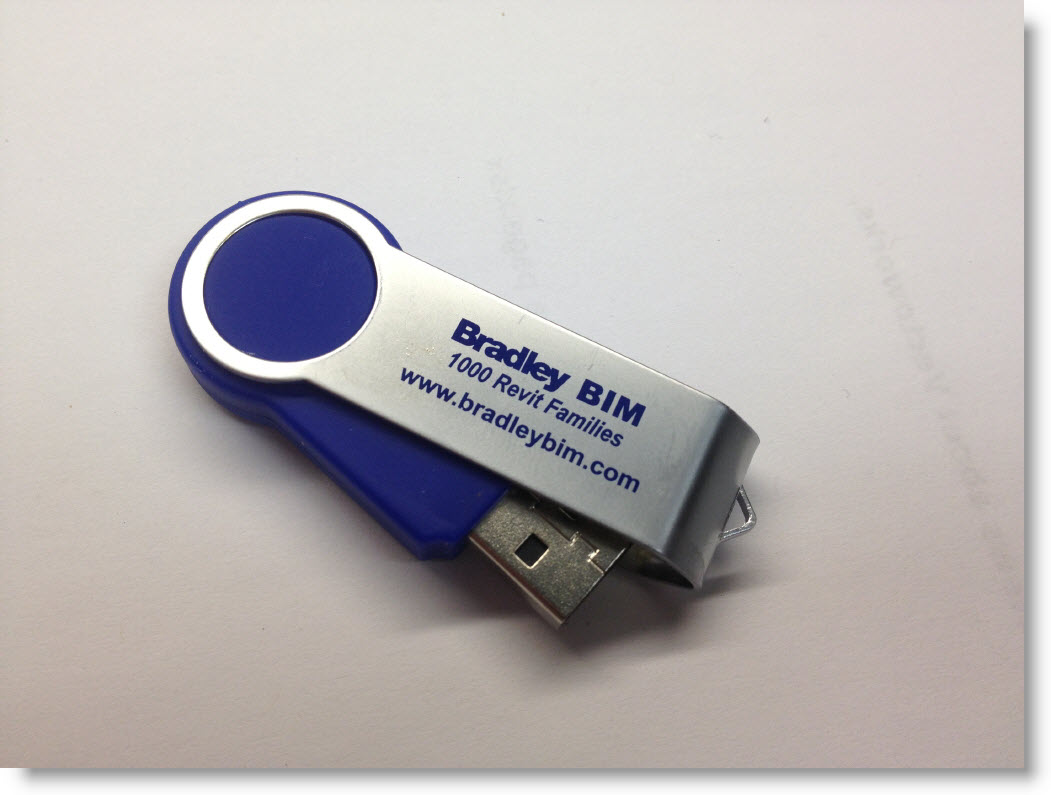

Free Bradley BIM 4GB Flashdrive | Contact Your Bradley Field Sales Organizations

Posted by Daniel Hughes on Nov 13, 2012 8:43:47 AM

Get Your Free 4GB Bradley BIM Flash Drive

Read More

Topics: bradley revit library, Revit-BIM Video, download revit material catalog, Revit material catalog, download free revit family library, Revit Help-Technical Support, free bradley bim flash drive, bradley field representative organization

Bradley Revit Toilet Partition Family | Instruction Sheet-Revit Material Catalog Bonus

Posted by Daniel Hughes on Nov 30, 2011 5:15:20 AM

Bradley Revit Toilet Partitions continue to be one of Bradley's Number 1 Revit family download from the Bradley Revit Family Library.

Read More

Topics: Bradley Revit-BIM FAQs, revit stall partitions, small revit family file size, revit family visibility settings, Revit material catalog, revit bathroom stall, revit restroom stalls, revit ceiling hung toilet partition, revit wall mounted toilet partition, Revit Help-Technical Support, revit, revit urinal screen family, revit mills toilet partitions, revit family toilet partition, revit toilet stall, Bradley Mills Toilet Partitions, autodesk

Bradley Revit Family Library Surges Past 900 Families - Thank You Revit Fans

Posted by Daniel Hughes on Nov 9, 2011 6:45:15 PM

The Bradley Revit Family Library surged past another milestone in October 2011; as the Bradley Revit library now exceeds more than 900 Revit families.

Read More

Topics: bradley revit library, Bradley Revit-BIM FAQs, bradley revit family library, Revit material catalog, download free revit family library, Bradley Plumbing Fixture Revit Family, revit, Bradley Specialty Equipment Revit Family, revit render material, download free revit family component, revit 2012 2011 2010 family library, autodesk

Download Bradley Revit Render-Ready Material Catalogs | YouTube Video

Posted by Daniel Hughes on Aug 2, 2011 8:32:09 AM

This video displays rendered images for several of Bradley's plumbing and specialty equipment Revit family components.

[youtube http://www.youtube.com/watch?v=OrJFh7jVu54?rel=0&w=560&h=420]

Bradley Revit-BIM family components are built with "render-ready" default materials; to meet the designer-contractor visualization and rendering requirements.

Bradley Lockerroom | Revit Toilet Partitions-Lockers-Lavatories

Revit users may download several Revit Material Catalogs (stone, metal, plastic, etc) with pre-built Bradley Revit materials. Revit-BIM Managers can transfer these materials from the Revit Material Catalog Files (RVT) into their Revit project files.

Related Article

Visit the Bradley Revit-BIM FAQ Page for additional Revit technical support for Bradley Revit-BIM Family Components.

Read More

Topics: Revit-BIM Video, Revit material catalog, Bradley Plumbing Fixture Revit Family, revit youtube video, revit, Revit Family Material, Bradley Specialty Equipment Revit Family, revit render material, revit technical support, download free revit family component, autodesk

Bradley Revit Family Library | Sinks - Lockers - Showers - Soap Dispensers

Posted by Jonathan Rydz on Jun 30, 2011 11:47:51 AM

Bradley Revit Family Library is offering a larger group of free Revit family components.

Read More

Topics: revit family soap dispenser, Revit material catalog, bradley verge lavatory system, bradley lavatory systems, revit wall shower family, locker revit family, bradley washroom accessories, revit column shower family, revit 2012 2011 2013 family library, revit locker room equipment, bradley verge revit family component, bradley revit sink family, Bradley Lenox Lockers-Benches, render ready material library, Bradley Showers, revit shower pan family

Bradley Revit Family Material Catalogs | Update

Posted by Jonathan Rydz on Apr 19, 2011 11:03:23 AM

We have revised and re-posted all of our Bradley Revit Family Materials Catalogs!

We have five catalogs available as separate downloads, which you can access on our Bradley Revit-BIM Family Library Download Pages | Right Margin or by clicking below:

Read More

Topics: bradley revit library, Revit MEP family component, Revit material catalog, Revit Plumbing fixtures, revit render material, Revit Bradley, revit architecture family component

Bradley Revit Verge-Lavatory Family

Posted by Jonathan Rydz on Apr 12, 2011 10:10:34 AM

The Revit Verge (lavatory) Family Components (4 files) are located in the Bradley Revit Family Library (1,000 Revit Models) with a default Revit material from the Bradley Revit material catalogs.

Read More

Topics: bradley revit library, Revit MEP, Revit material catalog, Revit Plumbing fixtures, revit verge sink, bradley lavatory systems, bradley verge revit family component, bradley revit sink family, bim sink model, Revit Bradley, revit lavatory sink family
