DIY Revit Workset-Worksharing Performance Checklist

Posted by Daniel Hughes on May 18, 2015 8:57:43 AM

A LinkedIn connection recently sent me this message: I'm seeking helpful tips about network and hardware requirements for best performance in Revit model links.

Our model is almost 400MB size and we're trying to find a solution through changes in the network hardware. We have a network speed of 1GB and we are facing a problem of Revit crashing when synchronizing to central model especially the MEP. While we're working with Autodesk, have you any suggestions?

Update: Thank you Daniel, these suggestions were helpful.

Here are the Revit worksharing suggestions that I sent via LinkedIn.

1. Revit performs best with lots of RAM, Fast Hard Drives with a high percentage of open file space, and Fast Network Connections (1GB)

2. Install 16, 24 or 32 GB of RAM on the local PCs, obviously using a 64-Bit OS & 64-bit Revit software. RAM is a one-time purchase. The ongoing mounting costs of downtime and troubleshooting user issues due to lack of RAM --its pays for itself with one "downtime event". The larger firms that I've visited (last 12 months) have minimum RAM specifications of 24-32GB of RAM.

3. Configure the local computer's Paging File, file size --to be equal to the "Recommended" size in the Virtual Memory dialog box.

Control Panel > System > Advanced Systems Settings

(Verify there's enough open disk space & verify w/ IT Manager prior to using this)

4. Selective purging of unused content within the project file to minimize file size. We recommended this process at project milestones: Schematics, DD, CD and/or document releases or document printing.

5. Use a Save-to-Central and select the Compact File Option to reduce Revit project file size regularly. This option works with non-workset configured Revit Project files (RVT) and/or Revit Family (RFA) files -- to reduce file size.

6. Create a schedule for users to stagger their Save-to-Central - so 2 or more users are not waiting or saving to central at the same time.

7. I suggest creating a new local file for each user a few times per month. The local files become bloated and less efficient over time. Note: Save to-Central prior to creating new local project files.

8. The Ideate Tech Support Article; "The Importance of Auditing Revit Models" Tip#3 reviews auditing a Revit to improve performance.

Tip #3: If your Revit model is starting to take its time opening or you notice general performance issues, then auditing it may improve the time it takes to open your project.

9. Consider performing a monthly Clean Disk and Defragment routine on each local computer to remove all temp files. Prior to running this routine, EXIT all software programs and close ALL files.

10. Review your Revit Workset organization against your Revit project workflow. Do they include too much information; that users don't always need to load. If you distributed the Revit content into more, but smaller worksets --does that perform better?

10. Make sure that ALL Worksets don't load when opening a Revit project file. We usually set the structural grid to auto-load so we knew where we were in the building. Then request users to manually load what they need.

11. Make sure each Linked CAD file is assigned its own workset--as CAD files can bog down a Save-to-Central

12. Make sure each Linked Revit model file is assigned its own workset including any terrain or landscaping files.

13. Does the Server have a high percentage of open disk space

14. Does the Server have disk speeds faster than the local PCs

15. Are the Server specifications better than the Local PCs?

16. Are you working in the cloud or remotely? How fast are your web connections to the remote server?

17. Make sure the server is not performing file backup-maintenance or running virus scans during working hours. I've personally encountered networks; that started file backup routines and/or virus scans on the server, over the lunch hour -- which completed later in the afternoon.

18. Verify Folder \ File \ User Permissions; that may block or slow a Save-to-Central. Consider reviewing this tech doc; "File not saved during synchronize with central troubleshooting".

Related Autodesk Articles:

Download Complete Bradley Revit Family Library (1000 Families) – Download All Options

Download Bradley Revit Family Library From Autodesk Seek Building Product Manufacturer Revit Library

Read More

Topics: Bradley BIM, Revit Help-Technical Support, Revit Training-Education, revit worksharing worksets, revit project performance, how to implement revit, revit worksets, revit system requirements

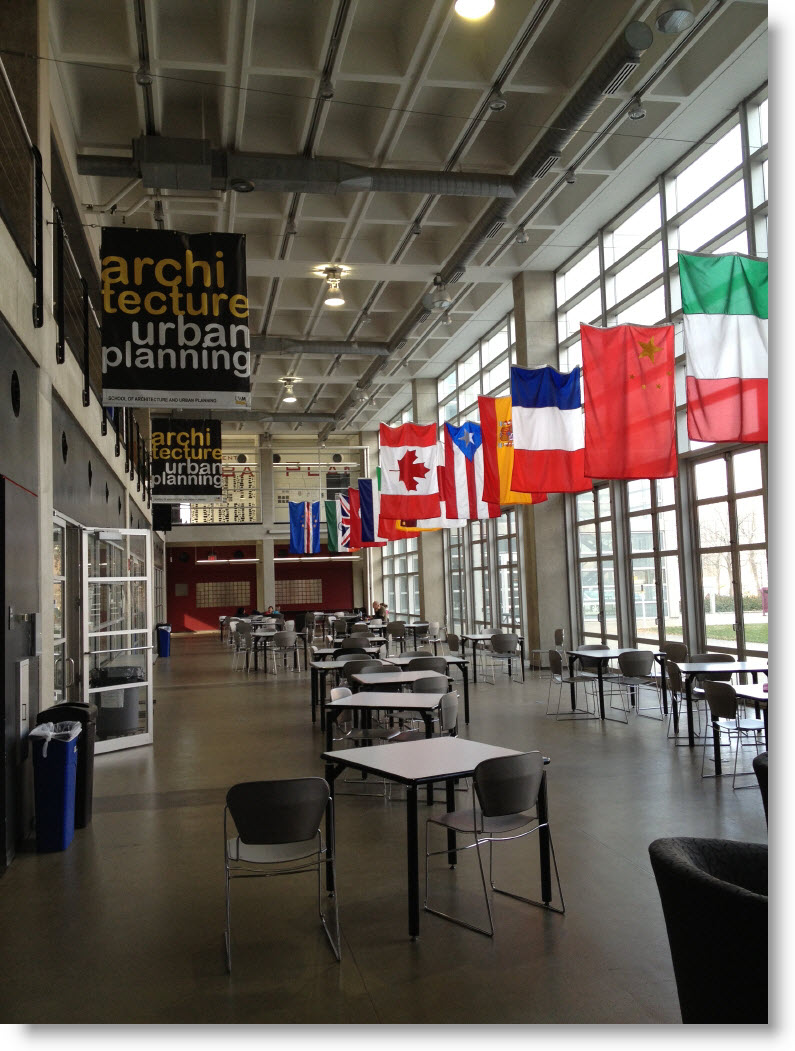

UWM School of Architecture Revit Classes by Bradley Corporation and Miron Construction
